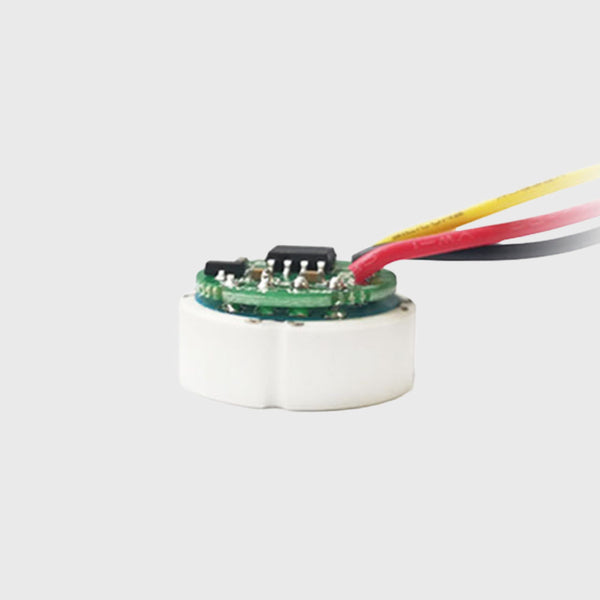

2 pcs WPBH01 Ceramic pressure sensor module

$12.00
Detection principle:Piezoresistive
Size:φ18.0×11.8 mm
Response time:<1mS
Pressure Range:2bar—400bar
Working Temperature:-20～125℃
Diaphragm material:Ceramic

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 200 In Stock
Categories: New Arrivals, Pressure sensor, Pressure sensors, Safety Alarm

Production Description:
The WPBH01 ceramic pressure sensor module is a voltage output type of pressure transmission module, there is no shell of the ceramic pressure transmitter. This product is made of refined ceramic seat ceramic piezo resistive pressure sensor, using precision conditioning chip on the sensor offset, sensitivity, temperature drift and other compensation. With high integration, small size, high precision, good consistency, anti-interference ability, response speed block, wide temperature range and other characteristics.
Feature:
  • Ceramic sensitive film with high overload capacity
  • Laser calibration for zero and full scale
  • Excellent corrosion resistance, wear resistance
  • Impact resistance, anti-vibration
  • High precision, good stability
  • Wide operating temperature range
  • Small size, easy to package
  • Environmental protection
Application:
  • WPBH01 ceramic pressure sensors are widely used in: process control, environmental control, hydraulic and pneumatic equipment, servo valves and transmission, chemical and chemical industry and medical instruments and many other fields.
  • Now, high-performance and low-cost ceramic sensor is the direction of development of pressure sensors with the trend of replacing other type sensors in Europe and the United States. In China, more and more users choose ceramic sensors instead of strain and diffusion Silicon pressure sensor.

Main technical parameters:

Item parameter Mark
Size φ18.0×11.8 mm
Range 2bar—400bar customizable
Power Voltage 5VDC customizable
Output Proportional voltage output、0.5～4.5V Standard signal output, customizable
Comprehensive accuracy 1%  2%  3% default2%
Compensation temperature 0～65℃  -10～85℃ Default 0-65℃
Working temperature -20～125℃
Response time ＜1mS
Working current ＜1.5mA
