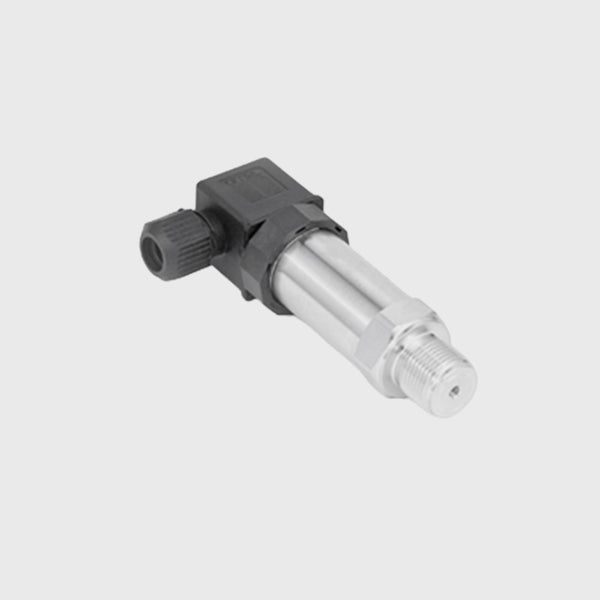

2 pcs Winsen WPCK07 Diffussed Silicon Pressure Transmitter

$90.00
Application: Process control system,Pressure calibration instrument,Hydraulic system,Biomedical instruments,Hydraulic system and valve,Refrigeration equipment and HAVC system,Ships and navigation,Pipeline pressure monitoring
Feature: Stainless steel consturcture,Wide temperature compensation-10~+70℃,Multi output methods,Excellent anti-interference ability,High reliability,Hi Accuracy,Low consumption

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 200 In Stock
Categories: Flow Sensors & Pressure Sensors, Pressure sensor, Pressure sensors


Production Description:
WPCK07 series diffused silicon pressure transmitter is integrated with high-precision diffused silicon pressure core, the internal special integrated circuit converts the sensor millivolt signal into a standard current signal, which can be directly connected with the computer interface card, control instrument,intelligent instrument or PLC, and the current output mode can be used for remote transmission. WPCK07 is a small size, light weight, all stainless steel sealed structure transmitter, which can be used in corrosive environment. The product has extremely high vibration and impact resistance and easily to install. I’s widely used in process control, automobile, medical equipment, HVAC and other fields.

Feature:

  • Stainless steel sturcture
  • Wide temperature compensation-10~+70℃
  • Multi output methods
  • Excellent anti-interference ability
  • High reliability
  • Hi Accuracy
  • Low consumption

Application:

  • Process control system
  • Pressure calibration instrument
  • Hydraulic system
  • Biomedical instruments
  • Hydraulic system and valve
  • Refrigeration equipment and HAVC system
  • Ships and navigation
  • Pipeline pressure monitoring

Main technical parameters:

Basic Parameter Index

Pressure Range

-100kPa～0～10kPa…100MPa


Pressure Reference

GaugePressure/AbsolutePressure/Sealed Gauge Pressure


Output

4-20mA(Defalt)

0.5-4.5V,0-5V,1-5V,0-10V,1-10V


Accuracy

±0.5%FS


Hysteresis

0.1%FS


Repeatability

0.1%FS


Temperature Drift

35kPa：±2%FS(0℃～60℃）

Others：±1.5%FS(-20℃～85)


Response time

≤1ms

Up to 90%FS

Overload pressure

Refer to the pressure range chart


Working life

≥1×10⁶ Pressure cycle


Environment Temperature

≥1×10⁶ Pressure cycle


EnvironmentTemperature

-30℃～105℃


Storage Temperature

-40℃～125℃


EMC

EMC


Vibration Resistance

Impact：200g/1ms；IEC 60068-2-27

Free fall：1m；IEC 60068-2-32


Protection level

IP65


Static electricity

IEC 61000-4-5 3 Level


Voltage Withstand

Current Output：500V/AC 1min

Voltage Output：250V/AC 1min


Media Compatible

Various media compatible with 316L stainless steel


Size of Hexagon

SW27


Ex-proof level

ExiaⅡCT6


Thread

M20*1.5（Default）
