$6.21
Digital PIR sensor RDB226, is an integrated design of sensitive element and signal processing chip, packaged sensitive element and IC chip into sensor shield. Sensitive element transfer the human movement...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 500 In Stock
Categories: PIR sensor

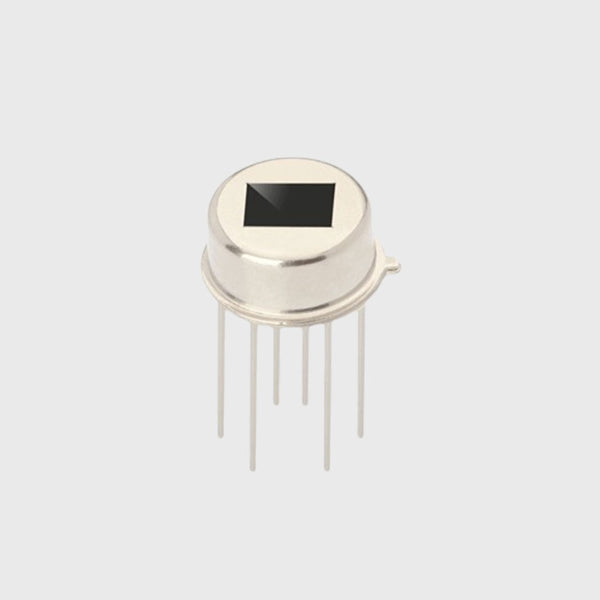

Digital PIR sensor RDB226, is an integrated design of sensitive element and signal processing chip, packaged sensitive element and IC chip into sensor shield. Sensitive element transfer the human movement signal to high-precision digital chip for data processing. Then the sensor gives digital signal for easy using.

Application

  • Security product
  • Human body induction toys
  • Human body induction lamps, and switches
  • Industrial automation control
  • Smart home
  • IOT terminals
  • Intelligent appliance

Features

  • High-precision AD signal process
  • Differential signal input mode, anti-interference ability
  • Sensitivity, delay time, and light adjustment function
  • Enable pin controls the sensor output
  • Wide voltage power supply(1.5~4.5V) and power consumption
  • Digital TTL signal output

Specifications

1.Max Limit

Parameter Symbol Min Max Unit Note
Voltage VDD -0.3 4.5 V 25℃
PinVoltage   -0.3 VDD+0.3 V 25℃
Storagetemperature TST -40 125



2.Working condition(T=25℃)

Parameter Symbol Min Typical Max Unit Note
Working condition
Voltage VDD 1.5 3.0 4.5 V Power supply mode
Current IDD   10   uA 10uA @3V@25℃
Sensitivity VSENS   104   uV
Temperature WST -25   85
ONTIME&SENS&OEN
SENS, ONTIME Input   0   VDD
SENS, ONTIME Input Current       20 nA Pull-down current
OEN Input Low LEL VIL_OEN     0.6 V
OEN Input High LEL VIH_OEN 1.2     V
Output Pin(REL)
Output drive current IREL -5   5 mA
Block time     2.0   S
Delay time ONTIME 1   3600 S 16 levels of adjustment
Oscillators and filters
Low filter cut-off frequency       7 Hz
High filter cut-off frequency       0.4 Hz
Chip oscillator frequency FCLK     32 KHz
Chip oscillator error FCLK_Err -1000   1000 Ppm/K -20~80℃
