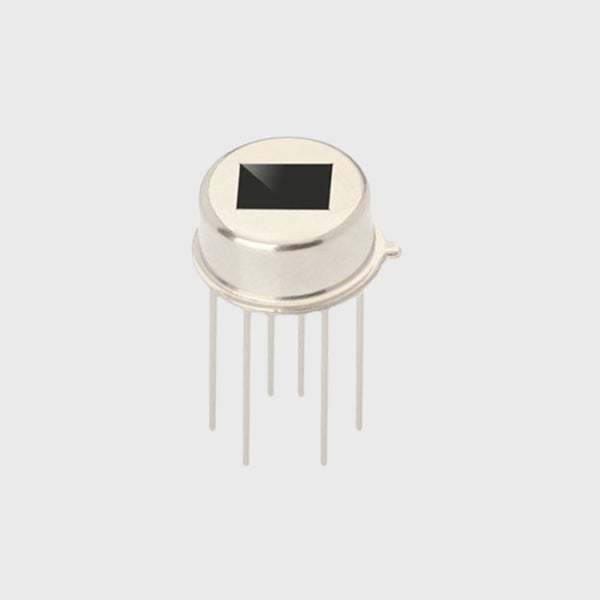

1 PC RDA226 Digital Pyroelectric Infrared Sensor

$6.26
Digital PIR sensor RDA-226, is an integrated design of sensitive element and signal processing chip, packaged sensitive element and IC chip into sensor shield. Sensitive element transfer the human movement...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 500 In Stock
Categories: PIR sensor

Digital PIR sensor RDA-226, is an integrated design of sensitive element and signal processing chip, packaged sensitive element and IC chip into sensor shield. Sensitive element transfer the human movement signal to high-precision digital chip for data processing. Then the sensor gives digital signal for easy using.

Application

  • Security product
  • Human body induction toys
  • Human body induction lamps, and switches
  • Industrial automation control
  • Smart home
  • IOT terminals
  • Intelligent appliance

Features

  • High-precision AD signal process
  • Differential signal input mode, anti-interference ability
  • Sensitivity, delay time, and light adjustment function
  • Enable pin controls the sensor output
  • Low working voltage and power consumption
  • Digital TTL signal output

Specifications

Max Limit:
Parameter Symbol Min Max Unit
Voltage VDD -0.3 3.6 V
Pinlimit Into -100 100 mA
Storagetemperature TST -40 125 ℃
Working condition:
Parameter Symbol Min Typical Max Unit Note
Working condition
Voltage VDD 2.7 3 3.3 V
Current ICC 12 15 20 uA
Sensitivity VSENS 110   530 uV adjustable
Temperature WST -20   85 ℃
Inputenable
High voltage VIH 80     %VDD
Low voltage VIL     20 %VDD
Current II -1   1 uA
Output
Lowcurrent IOL -10     mA
Highcurrent IOH     10 mA
Blocktime     2.3   S
Delaytime ONTIME 2.3   4793 S adjustable
Inputadjustment (sensitivity/delay time)
Voltage input range   0   VDD V 0V-1/4VDD
Input bias current   -1   1 uA
Oscillators and filters
Lowfilter cut-off frequency       7 Hz
High filter cut-off frequency       0.44 Hz
Chip oscillator frequency Fclk     64 KHz



* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
