$23.00
$20.00

Application:Air purifiers,Ventilation systems,Air quality monitoring equipment
Feature:Good consistency,Real time response,Accurate data,Low power consumption

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 497 In Stock

Production Description:

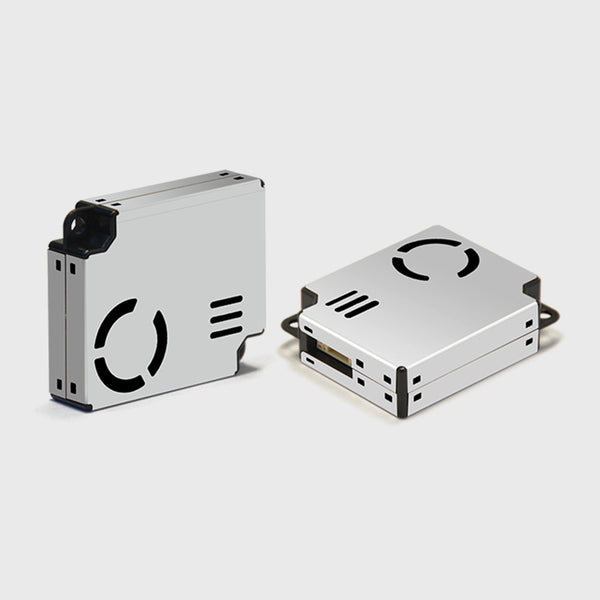

Laser Dust sensor module ZH07 is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good consistency and stability. It is easy to use, with UART & PWM output.
Feature:

  • Good consistency
  • Real time response
  • Accurate data
  • Low power consumption
  • Minus resolution of particle diameter 0.3 µm

Application:

  • Air purifiers;
  • Ventilation systems;
  • Portable instrument;
  • Air quality monitoring equipment;
  • Air conditioner;
  • and smart home fields;

    Technical Parameters:

    Model

    ZH07

    Detectable particle

     diameter range

    0.3-10μm

    Effective Range

    0-1000μg/m³

    Detection Interval

    1s

    PM2.5

    Detection Accuracy

    0-100 μg/m³:±15μg/m³

    101-1000 μg /m³: ± 15% Reading

    (Test Condition: 25 ± 2 ℃, 50 ± 10% RH,TSI8530, Cigarette, GBT18801-2015)

    Preheating Time

    30s

    Output

    UART_TTL Output (3.3V level, default)

    PWMOutput (3.3V level, default)

        Working Voltage

    4.8V~5.5V(DC)

    Working Current

    <120mA

    DormancyCurrent

    <20mA

    Response Time

    T90<30s

    Working Humidity

    0~80%RH(No Condensation)

    Working Tem.

    -10~60℃

    Storage Tem.

    -30~70℃

    Dimension

    48×40×12.5mm(L×W×H)

    Weight

    <30g

    MTTF

    Continuous > 10000H
