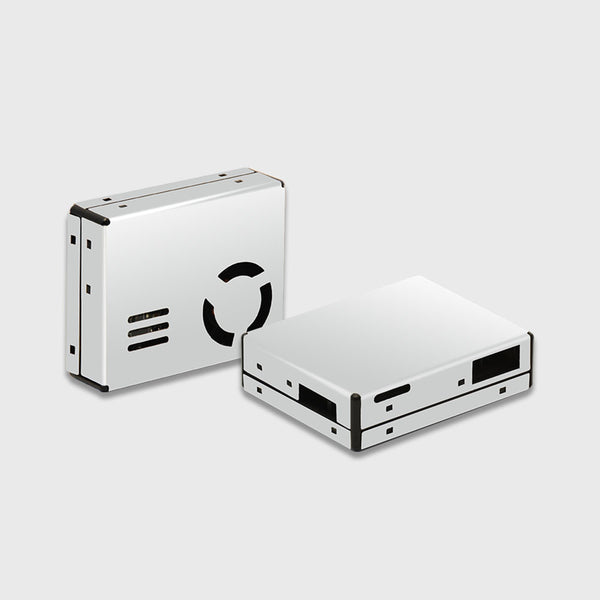

5 pcs ZH06 Particulate Matter Laser Sensor Module

$60.00

Application:Air purifiers,Ventilation systems,Portable instrument
Feature:Small size,Good consistency,Real time response;

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 493 In Stock
Categories: Environmental Health, IAQ Detection Module/Monitor, Indoor Air Quality(IAQ) Detection, Particle Sensor


Production Description:
Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with serial port output & PWM output. ;Small size is suitable for integrating.
Feature:

  • Small size;
  • Good consistency;
  • Real time response;
  • Low power consumption;
  • Minimum resolution of particle diameter is 0.3 µm;

Application:

  • Air purifiers
  • Ventilation systems
  • Portable instrument
  • Air quality monitoring equipment
  • Air conditioner
  • smart home equipment

    Technical Parameters：

    Model

    ZH06-Ⅰ

    ZH06-II

    ZH06-III

    ZH06-IV

    Detection Range

    0.3-10μm

    0.3-10μm

    0.3-10μm

    0.3-10μm

    Effective Range

    0-1000μg/m³

    0-1000μg/m³

    0-1000μg/m³

    0-1000μg/m³

    Detection Interval

    1s

    1s

    1s

    1s

    PM2.5

    Detection Accuracy

    0-100μg/m³：±15μg/m³

    101-1000μg /m³:±15% Reading

    (Test Condition: 25±2℃, 50±10% RH,TSI8530, Cigarette, GBT18801-2015)

    0-100μg/m³：±15μg/m³

    101-1000μg /m³:±15% Reading

    (Test Condition: 25±2℃, 50±10% RH,TSI8530, Cigarette, GBT18801-2015)

    0-100μg/m³：±15μg/m³

    101-1000μg /m³:±15% Reading

    (Test Condition: 25±2℃, 50±10% RH,TSI8530, Cigarette, GBT18801-2015)

    0-100μg/m³：±15μg/m³

    101-1000μg /m³:±15% Reading

    (Test Condition: 25±2℃, 50±10% RH,TSI8530, Cigarette, GBT18801-2015)

    Preheating Time

    30s

    30s

    30s

    30s

    Output

    UART_TTL Output (3.3V level)

    UART_TTL Output (3.3V level, default)

    UART_TTL Output (3.3V level, default)

    UART_TTL Output (3.3V level)

    PWMOutput (3.3V level)

    PWM Output (3.3V level, default)

    PWM Output (3.3V level, default)

    PWMOutput (3.3V level)

       Working Voltage

    4.9V～5.5V(DC)

    4.9V～5.5V(DC)

    4.9V～5.5V(DC)

    4.9V～5.5V(DC)

    Working Current

    ＜120mA

    ＜120mA

    ＜120mA

    ＜120mA

    DormancyCurrent

    ＜20mA

    ＜20mA

    ＜20mA

    ＜20mA

    Response Time

    T90＜45s

    T90＜45s

    T90＜45s

    T90＜45s

    Working Humidity

    0～80％RH(No Condensation)

    0～80％RH(No Condensation)

    0～80％RH(No Condensation)

    0～80％RH(No Condensation)

    WorkingTem

    －10～60℃

    －10～60℃

    －10～60℃

    －10～60℃

    Storage Tem

    －30～70℃

    －30～70℃

    －30～70℃

    －30～70℃

    Dimension

    47×37×12.2mm(L×W×H)

    47×37×12.2mm(L×W×H)

    47×37×12.6mm(L×W×H)

    47×37×12.2mm(L×W×H)

    Weight

    ＜30g

    ＜30g

    ＜30g

    ＜30g

    MTTF

    Continuous > 10000H

    Continuous > 10000H

    Continuous > 10000H

    Continuous > 10000H

    For more details, please contact customer service staff/leave a message for inquiry.
