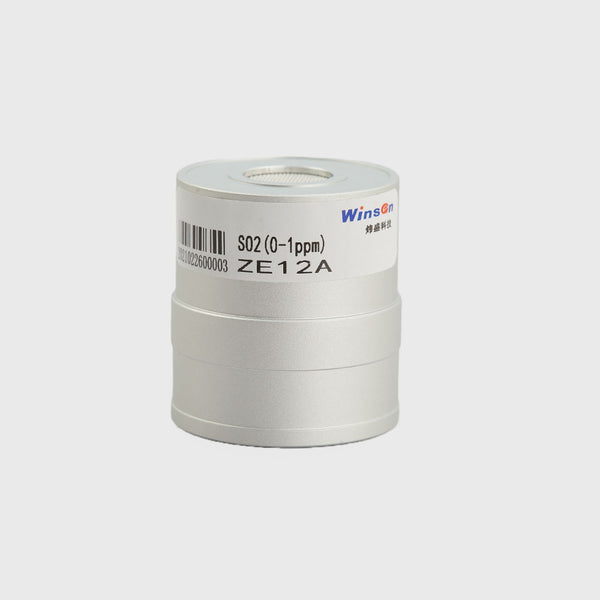

1pc of ZE12A Electrochemical Detection Module

$315.00
$215.00
Application:City atmospheric environmental monitoring , enterprise environment monitoring, Factory area unorganized emission monitoring
Feature:High sensitivity & resolution,Low power consumption & long working life

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 498 In Stock
Categories: CO sensor, Industrial & Mining, Industrial Gas Detection, O3 sensor


Production Description:
ZE12A is a general-purpose and high-performance electrochemical module. It can detect the CO, SO2, NO2, O3 based on electrochemical principle, it has good selectivity and stability. A temperature sensor is built-in for temperature compensation. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.
Feature:

  • High sensitivity & resolution
  • Low power consumption & long working life
  • UART and analog voltage output
  • Good stability and excellent anti-interference ability

Application:
City atmospheric environmental monitoring , enterprise environment monitoring, Factory area unorganized emission monitoring, emergency monitoring, environment evaluation monitoring, Portable gas detector, various gas detection equipment and smart home appliance.

Technical Parameters

Model No.

ZE12A

Target Gas

CO, SO2, NO2,O3, H2S

DetectionRange

CO(0-10ppm), SO2(0-1ppm),NO2(0-1ppm),O3(0-1ppm),H2S(0-1ppm)

  Output Data

DAC(0.4～2V)

standard voltage signal

UART Output(3V level, compatible with 5V)

Working voltage

DC 5.0±0.1V

Response time

≤120 Sec

Resolution

≤10ppb

            Dimension

Φ39×44 mm

               Weight

75g

Operating Environment

Temp.:-20～50℃

Humidity.:15%RH-90％RH

(no condensation)

Storage  Temp.

0～20℃

Lifespan

2 years  (in air)
