Production Description:

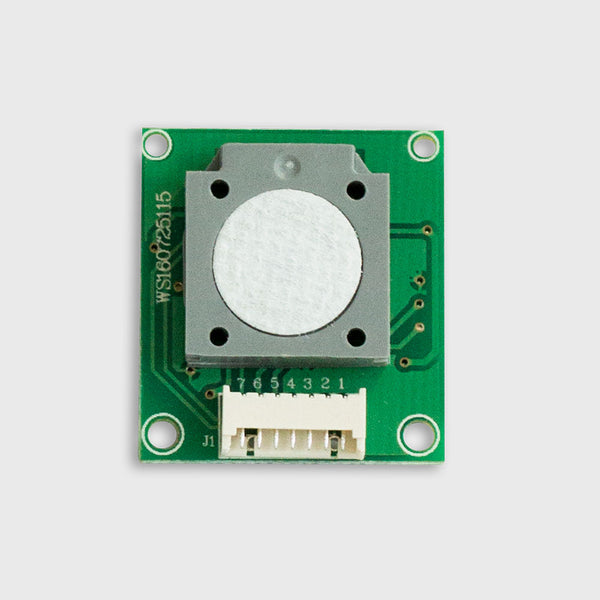

ZE08-CH2O is a general-purpose and miniaturization electrochemical formaldehyde detection module. It utilizes electrochemical principle to detect CH2O in air which makes the module with high selectivity and stability. It is built-in temperature sensor to make temperature compensation. It has the digital output and analog voltage output at the same time. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
Feature:

  • High sensitivity &resolution, Low power consumption, Long life
  • UART/Analog Voltage/PWM wave output
  • Good stability, excellent ability of Anti-interference
  • Temperature compensation , Excellent Linear output

Application:
Portable detector, air-quality monitor, air cleaner, air renewal system, air conditioner, smart home.

Main technical parameters:



Model No.

ZE08-CH2O

Target Gas

CH2O

Interference Gas

Alcohol, CO &ect.

Output Data

DAC(0.4~2V standard voltage output,corresponding concentration: 0 ~ full scale )

UARToutput(3VTTLElectrical Level)

Working Voltage

3.7V~5.5V

Warm up time

≤3 minutes

Response time

≤60s

Resume time

≤60s

Detection Range

0~5ppm

Resolution

≤0.01ppm

Operating Temp.

-20℃~50℃

Operating Hum.

15%RH-90%RH(No condensation)

Storage temp.

0~25℃

Working life

5 years (in clean air 18℃~ 25℃)
