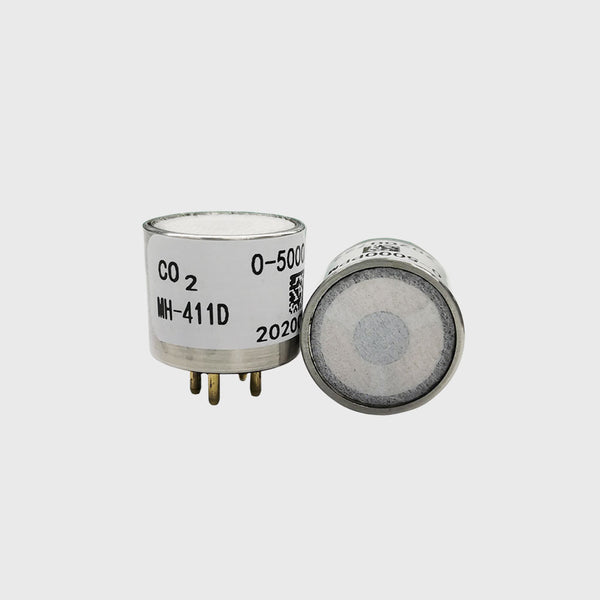

1 PC MH-411D NDIR Infrared CO2 Sensor

$117.85
MH-411D infrared gas sensor is a miniature universal intelligent sensor, which adopts NDIR theory to detect concentration of CO2 in air and has good selectivity, stable performance, long life, also...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 500 In Stock
Categories: CO2 sensor

MH-411D infrared gas sensor is a miniature universal intelligent sensor, which adopts NDIR theory to detect concentration of CO2 in air and has good selectivity, stable performance, long life, also is independent of Oxygen. The inside temperature sensor could be used for temperature compensation. This miniature infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, micro machine workout and superior circuit design.

Application

Widely used for HVAC refrigeration, industrial-process control and safety protection,agriculture and animal husbandry.

Features

  • High sensitivity, high resolution, low power consumption, fast response time
  • Output method: UART, analog voltage signal
  • Temperature compensation, excellent linear output
  • Long lifespan, excellent stability, anti-poisons, anti-vapor interference

Specifications

Table 1. Main Parameters

Model MH-411D
Detection gas CO2
Working Voltage 3.6~5VDC (Need to be powered by safety barrier)
Average Current <85mA
Detection range 0-10%vol Optional (refer Fig2.)
Interface Level 3.0V
Output Signal UART
0.4~2V (Need to be powered by safety barrier)
Warm-up Time 3 min
Response Time T90<30s
Working Temperature -20°C ~60°C
Working Humidity 0~95%RH (no condensation)
Sizes Φ20 mm×22.2 mm
Weight 35g
Life Time >5 years
Defense Grade IP54
Power, communication terminal Intrinsic safety Ui=7.5VDC，Ii=265mA， Pi=0.5W，Ci=10μF，Li=0mH



Table 2. Measuring Range and Resolution

Target Gas MeasuringRange Accuracy Note
CO2 0~2000 ppm   ±(50ppm + 5% of Read Value) Temperature compensation
0~6000 ppm Temperature compensation
0~1% VOL Temperature compensation
0~3% VOL Temperature compensation
0~5%VOL Temperature compensation



* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
