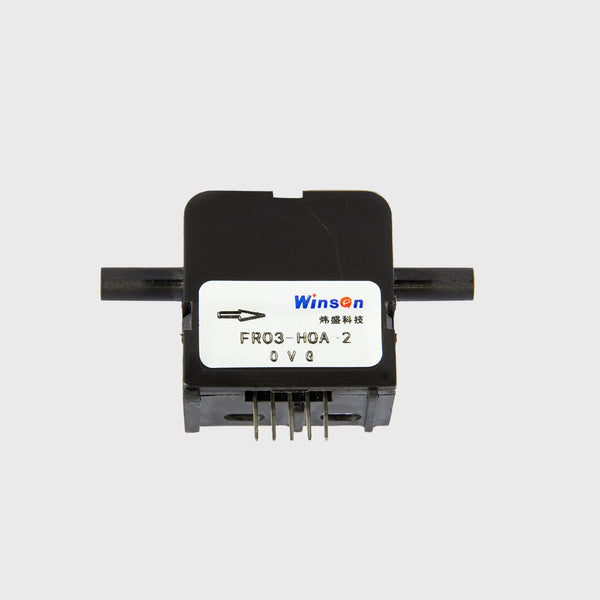

1 PC Gas Flow Sensor FR03H

$96.42
FR03H flow sensor uses the MEMS thermal principle to monitor the flow of pipeline gas media. This product adopts low pressure loss design and is widely used in various types...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 500 In Stock
Categories: Flow sensor

FR03H flow sensor uses the MEMS thermal principle to monitor the flow of pipeline gas media. This product adopts low pressure loss design and is widely used in various types of gas flow measurement.

Application

Widely used to measure non-corrosive gases in industrial process control, dust particles counter, automated control, medical equipment, portable instruments, air quality sampling, smart building and environmental monitoring equipment.

Features

  • High sensitivity.
  • Extremely low initial flow rate.
  • High precision.
  • High measurement repeatability.
  • Low pressure loss.
  • Modular design.
  • Digital IIC or linear analog voltage output

Specifications

Product number



 FR03H


DiameterD



 ∅3mm


Flow measurement



 Maximum flow



 5L/min  @20℃ 101.325kPa


measurementaccuracy



 [ 0.15, 5]L/min ±2.5%



[0,0.15)L/min±0.5%FS


Repeatability



 0.5%


work pressure



 ≤200kPa


Burst pressure



 ≥0.3MPa_


Operating temperature



 0℃～50℃


output signal



 output method



 Digital IICor linear analog voltage


Simulate traffic



 Linear0.5V~4.5V


IICcommunication rate



 100kHz__


Signal refresh time



 ≤1m s_


Signal response time



 ≤3ms


Electrical parameters



 Operating Voltage



 DC4.9V~14V


Working current



 ≤30mA_


Electrical Interface



 PH2.0-5Pplug-in connector or



2.54mm-5P pin


other



 Storagetemperature



 -20℃～80℃


△Pmax



 ≤1000Pa


Measuring medium



 Dry, clean, non-corrosive gas





* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.

]
