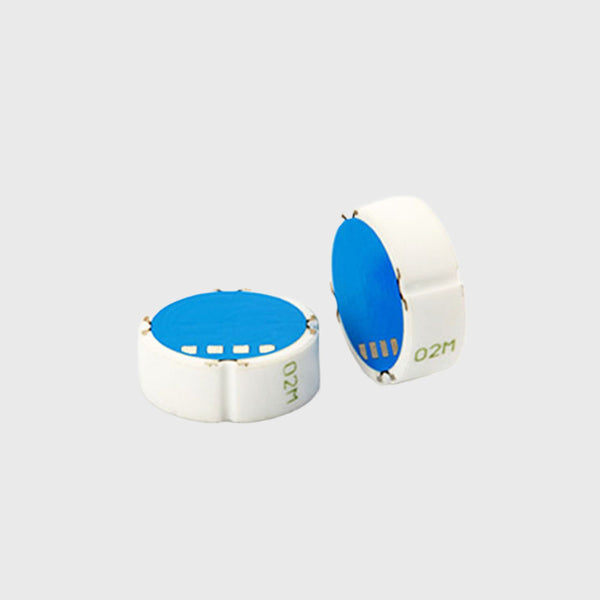

10pcs Winsen WPAH01 Ceramic Pressure Sensor

$20.00
Application:process control, environmental control, hydraulic and pneumatic equipment
Feature:Ceramic sensitive film with high overload capacity,Laser calibration for zero and full scale

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 198 In Stock
Categories: Pressure sensor, Pressure sensors, Safety Alarm

Production Description:
WPAH01 ceramic pressure sensor adopts ceramic base, made into ceramic piezoresistance pressure sensor with thick-film technology. It’s size Φ18mm6.35mm. Ceramic is a kind of material with high elasticity, corrosion resistance, wear resistance, resistance to impact and vibration. Ceramic’s good thermal stability and thick film high temperature sintering process make the ceramic pressure sensor’s operating temperature range up to -40 ~ 125 ℃. The ceramic's high elasticity and creep resistance make the ceramic pressure sensor have good long-term stability. Besides, the corrosion resistance character makes the sensor have unique advantages in the application such as the refrigeration, chemical and environmental protection and other fields.
Feature:

  • Ceramic sensitive film with high overload capacity
  • Laser calibration for zero and full scale
  • Excellent corrosion resistance, wear resistance
  • Impact resistance, anti-vibration
  • High precision, good stability
  • Wide operating temperature range
  • Small size, easy to package
  • Environmental protection

Application:
WPAH01 ceramic pressure sensors are widely used in: process control, environmental control, hydraulic and pneumatic equipment, servo valves and transmission, chemical and chemical industry and medical instruments and many other fields.
Main technical parameters:

Item

Parameter

Size

Φ18mm*6.35mm

Detection Range

2bar、5bar、10bar、20bar、50bar、100bar

Working voltage

2-20V

Sensitivity

1.5—4mv/V，typical value 2.5±1.0mv/V

Input, output resistance

10KΩ±30%

Temperature range

-40℃-125℃

Zero output

0—±0.4 mv/V，，typical value 0±0.25mv/V

Linearity, hysteresis, repeatability

typical value ±0.3 %FS

Temperature drift

Typical value ±0.05%FS/℃

Safe overload

two times of rated detection range

(when sensitivity is typical value)

Stability

Better than ±0.5%FS / year（if it is used properly）
