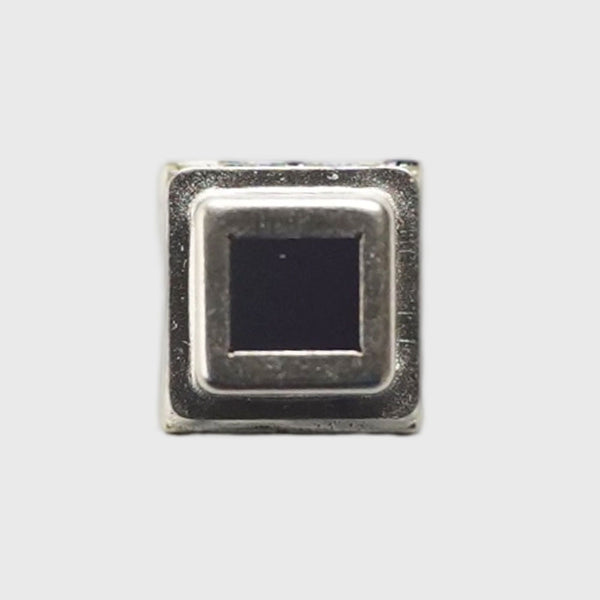

10 PCS RPTD-627-4-X-F Pyroelectric Infrared Sensor

$15.00
The RPTD-627-4-X-F digital pyroelectric sensor integrates the sensitive element of a traditional pyroelectric sensor with a signal processing chip. The sensitive element and IC chip are encapsulated inside the sensor's...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 500 In Stock
Categories: PIR sensor

The RPTD-627-4-X-F digital pyroelectric sensor integrates the sensitive element of a traditional pyroelectric sensor with a signal processing chip. The sensitive element and IC chip are encapsulated inside the sensor's shield. The sensitive element detects infrared signals generated by human movement and transmits them in a differential input manner to a high-precision digital signal processing chip. After processing, the sensor outputs a 16-bit digital signal for easy use.

Application

  • Security products
  • Human-sensing toys
  • Human-sensing lighting, switches, and home appliances
  • Smart home and smart appliances
  • IoT terminals
  • Industrial automation control

Features

  • High sensitivity and superior signal-to-noise ratio
  • Single-wire serial data
  • 16-bit digital signal output
  • Voltage and micro power consumption
  • Dual-element compensation structure for effective resistance to environmental interference
  • High-cutoff depth interference filter with strong resistance to white light
  • Excellent anti-interference performance
  • Suitable for SMD mounting

Specifications

Working condition(TA=25℃, Unless otherwise specified)

Parameter Symbol Testing condition Min Typical Max Min
Power voltage VDD - 2.5 3.3 5.5 V
Operating current IDD No load, VDD=3.3V -- 8 -- uA
ADC resolution       16   Bits
Low pass filter cutoff frequency FL     7   Hz
High pass filter cutoff frequency FH     0.44   Hz
Absolute maximum rating(TA=25℃, Unless otherwise specified)

Parameter Symbol Value Unit
Power voltage VDD 6 V
Storage temperature Topr -40~85 ℃
Storage temperature Tstg -55~150 ℃
Soldering temperature TL 260℃, 10 s
ESD(note)   2K V



* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
