Application:Portable meters,Air quality monitoring equipment,Air purifiers
Feature:High sensitivity,High resolution,Low power consumption


100% MONEY


Availability: 495 In Stock

Production Description:

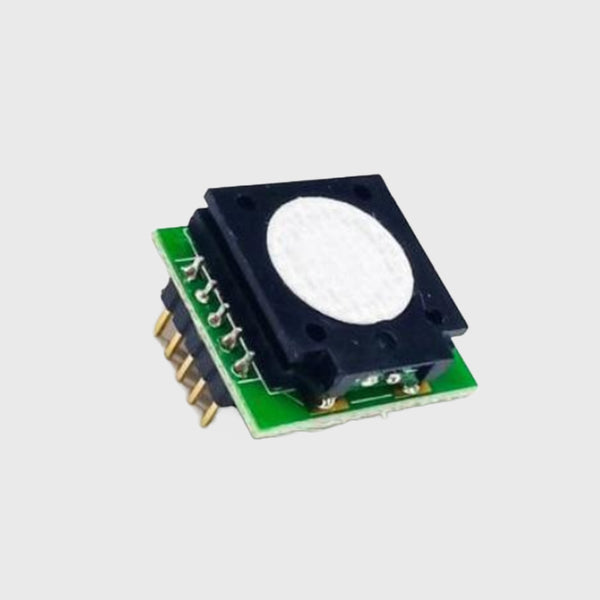

The ZE40B-TVOC electrochemical alcohol module is a general-purpose, miniaturized module. The electrochemical principle is used to detect the presence of TVOC in the air, which has good selectivity and stability. Built- in temperature sensor for temperature compensation; digital output and analog voltage output for easy use. ZE40A-TVOC is a universal gas module designed and manufactured by combining proven electrochemical detection technology with sophisticated circuit design.

  • High sensitivity
  • High resolution
  • Low power consumption
  • Long lifespan
  • UART and analog voltage output


  • Portable meters
  • Air quality monitoring equipment
  • Air purifiers
  • Fresh air ventilation systems
  • Air conditioners
  • Smart home equipment and other places

Main technical parameters:

Model No. ZE40B-TVOC
Testing Gas alcohol
Interference gases CO &etc gas
Output Data UART Output (3Velectrical level)
Working Voltage 3.7~5.5V
Preheating time ≤3min
Response time ≤60 sec
Recovery time ≤60 sec
Detection Range 0~2 ppm
Resolution ≤0.01ppm
Operating Environment Temp.:-20~50℃
Humidity.:15%-90%RH(no condensation)
Storage Temp. 0~25℃
Working Life 2 years (in air)
