$315.00
$215.00

Application:City atmospheric environmental monitoring , enterprise environment monitoring. Factory area unorganized emission monitoring, emergency monitoring, environment evaluation monitoring. Portable gas detector, various gas detection equipment and smart home appliance.

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7


Production Description:

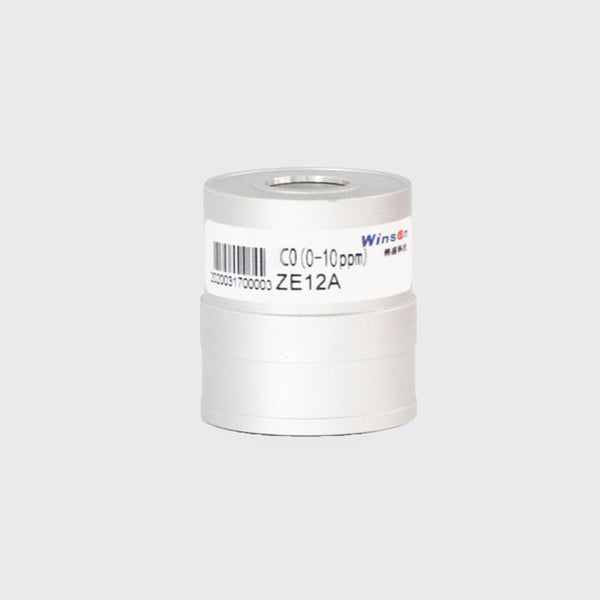

ZE12A is a general-purpose and high-performance electrochemical module. It can detect the CO,SO2,NO2,O3 based on electrochemical principle, it has good selectivity and stability. A temperature sensor is built-in for temperature compensation. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers' different detection needs.
Feature:
High sensitivity & resolution
Low power consumption & long working life
UART, analog voltage and PWM output
Good stability and excellent anti-interference ability
Application:
City atmospheric environmental monitoring , enterprise environment monitoring. Factory area unorganized emission monitoring, emergency monitoring, environment evaluation monitoring.Portable gas detector,various gas detection equipment and smart home appliance.

Technical Parameters:

Model No.

ZE12A

Target Gas

CO, SO2, NO2,O3, H2S

DetectionRange

CO(0-10ppm), SO2(0-1ppm),NO2(0-1ppm),O3(0-1ppm),H2S(0-1ppm)

  Output Data

DAC(0.4~2V)

standard voltage signal

UART Output(3V level, compatible with 5V)

Working voltage

DC 5.0±0.1V

Response time

≤120 Sec

Resolution

≤10ppb

            Dimension

Φ39×44 mm

               Weight

75g

Operating Environment

Temp.:-20~50℃

Humidity.:15%RH-90%RH

(no condensation)

Storage  Temp.

0~20℃

Lifespan

2 years  (in air)
