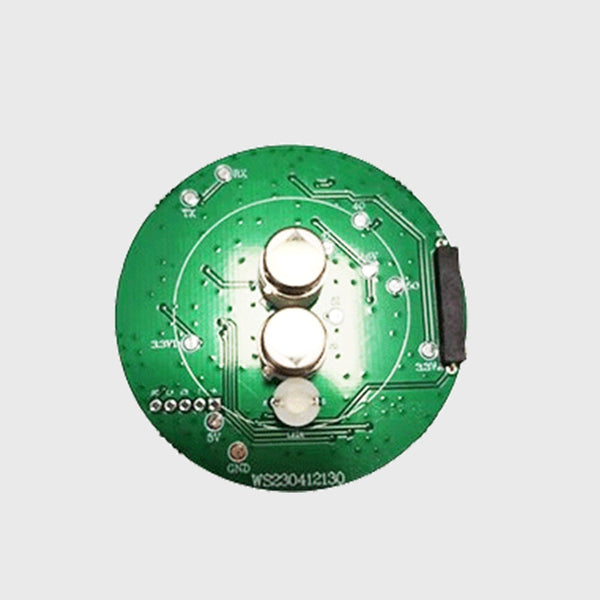

1 pic ZRP320 Pyro-electric Flame sensor module

$49.00

Application: Space industry, storage facilities, printing industry, paint manufacturing, pharmaceutical industry, power generation facilities, machinery and automobile manufacturing, petroleum and petrochemical industry, etc.

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 500 In Stock
Categories: Flame sensor

Production Description:

ZRP320 is a flame detection module based on the infrared principle. It uses pyroelectric sensors and high-performance microprocessors. It is a flame detection module designed through the combination of different sensors. It has a built-in high-speed microcontroller to collect sensor signals and use reliable and efficient algorithms to effectively judge the fire. The interface is simple and the output signals are complete. Simply design a simple power circuit and relay circuit to develop a complete flame detector, shortening the product development cycle.

Feature:

  • Adopt large field of view angle, high detection rate, and low microphone effect sensor;
  • Combining multiple combustion substances to establish a data model with low false alarm rate;
  • M4 core high-speed microcontroller with fast response and low power consumption.

Application:

Space industry, storage facilities, printing industry, paint manufacturing, pharmaceutical industry, power generation facilities, machinery and automobile manufacturing, petroleum and petrochemical industry, etc.

Technical Parameters：

Model ZRP320
Detection object Hydrocarbon combustion
Spectral range 4.48~5.0um
Operating voltage 5V±0.2 DC
Operating current ≤10mA
Interface level 0~3.3V
Output signal High and low levels can be used to drive relays
PWM output
The LED indicator turns red
Operating environment Temperature: -10~55℃
Humidity: 15%~90% RH (without condensation)
Dimension Ø50mm*H21.5mm
Response time Four levels are represented by the number of green LED flashes, with the green light flashing every 3 seconds representing the alarm time level. Level I: 6-10 seconds, used in non-interference environments and fast alarm situations; Level II: 15-18 seconds, used in non-interference environments and reliable alarm situations; Level III: 22-26 seconds, used in environments with interference and reliable alarm situations; Level IV: 3-4 seconds, used to demonstrate rapid alarms.
Adjust method Magnetic rod adjustment
Detecting distance 60m@0.3m*0.3m(Fuel: n-heptane)
