5 pcs ZPH03 Particles Sensor

$18.00

Application:Air purifier,Portable Instrumentation,HVAC system,Air conditioner
Feature:Good Stability for Long Time,Low Consumption,Good Anti-interference Performance

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 500 In Stock
Categories: Environmental Health, Particle Sensor, Particulate Matter Detection

Production Description:

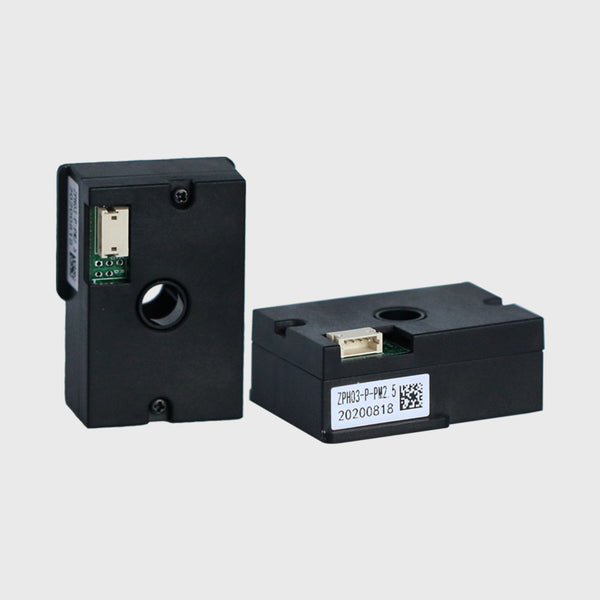

This sensor integrates infrared PM2.5 detection technology, using particle counting principle to detect PM2.5 in the environment. It can detect the particles (diameter ≥1μm).
Before delivery, the sensor has been aged, debugged, calibrated with good consistency and high sensitivity.
Feature:

  • Good Stability for Long Time
  • Low Consumption
  • Good Anti-interference Performance
  • High Sensitivity
  • Good Consistency

Application:

  • Air purifier
  • Air refresher
  • Portable Instrumentation
  • HVAC system
  • Air conditioner
  • Domestic and Commercial AC

    Technical Parameters：

    Model

    ZPH03

    Working voltage range

    5±0.2 V (DC)

    Output mode

    UART、PWM

    Output signal voltage

    4.5±0.2 V

    Detection ability

    Smallest particles 1 μm diameter

    Detection Range

    4 ~ 500ug/m

    Warm-up time

    ≤10s

    Working Current

    ≤30mA

    Humidity

    range

    Storage

    ≤95%RH

    Working

    ≤95%RH(No condensation)

    Temperature

    range

    Storage

    -30℃～60℃

    Working

    0℃～50℃

    Size

    46.0×32.0×18.3mm（L×W×H）

    Physical interface

    ZH1.5mm-4P ConnectorSocket
