$20.00
Application:CO gas leakage alarm and detector
Feature:High Sensitivity to CO,Mini Size,Fast response and resume character,Excellent Stability and long life
Feature:High Sensitivity to CO,Mini Size,Fast response and resume character,Excellent Stability and long life
Availability:
498 In Stock
Production Description:

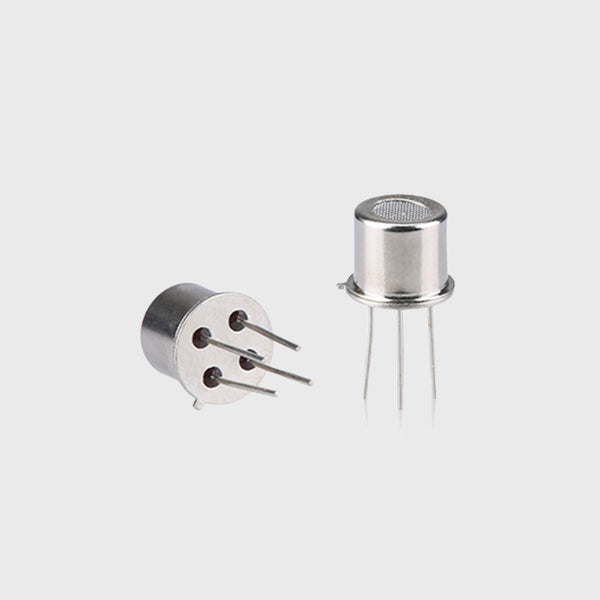

MP-7 adopts advanced planar construction production technics, using MOS material formed by micro AL2O3 ceramic tube and heater, electro-down-lead be fetched out, and are fixed into a metal base and cover. Adopting low and high temperature circling detection: when low temperature （VH=1.5V）, it detects CO, Conductance of sensor bigger along with CO concentration in air; When high temperature（VH=5.0V）, clean other gases, using simple circuit could change the conductance, change it to be output signal which relatively to the gas concentration.
Feature:
- High Sensitivity to CO
- Mini Size
- Fast response and resume character
- Excellent Stability and long life
Application:
They are used in gas leakage detecting equipment in family, industry and commercial field, fire resistance/ safety detection system.
CO gas leakage alarm and detector
Main technical parameters:
|
Model |
MP-7 |
||
|
Sensor Type |
Flat surfaced |
||
|
Standard Encapsulation |
Metal cap |
||
|
Target Gas |
CO gas |
||
|
Detection range |
50-1000ppm CO |
||
|
Standard Circuit Conditions |
Loop Voltage |
Vc |
≤10V DC |
|
Heater Voltage |
VH |
5V±0.1V AC or DC(high temp.) 1.5V±0.1V AC or DC(low temp.) |
|
|
Heating time |
TL |
60S±1S（high temp.） 90S±1S（low temp.） |
|
|
Load Resistance |
RL |
Adjustable |
|
|
Sensor character under standard test conditions |
Heater Resistance |
RH |
105Ω±10Ω (room temp.) |
|
Heater consumption |
PH |
≤240mW |
|
|
Sensitivity |
S |
Ro(in air)/Rs(100ppm CO)≥3 |
|
|
Output voltage |
VS |
||
|
Concentration Slope |
α |
≤0.6(R300ppm/R50ppmCO) |
|
|
Standard test conditions |
Operation Temp. |
Tao |
-10℃～50℃ |
|
Storage Temp. |
Tas |
-20℃～70℃ |
|
|
Relative Humidity |
RH |
＜95%RH |
|
|
O2 content |
21%±1%（not less than 18%） O2 concentration effects initial value, sensitivity and repeatability. |
||
|
Preheat time |
Not less than 48 hours |
||
|
Lifespan |
10 years |
||
