$10.71
MR513 alcohol C2H5OH gas sensor detect the ethanol gas concentration through resistance variation of platinum loop, which is based on the principle of the gas absorbed on the surface of...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 498 In Stock
Categories: Alcohol sensor

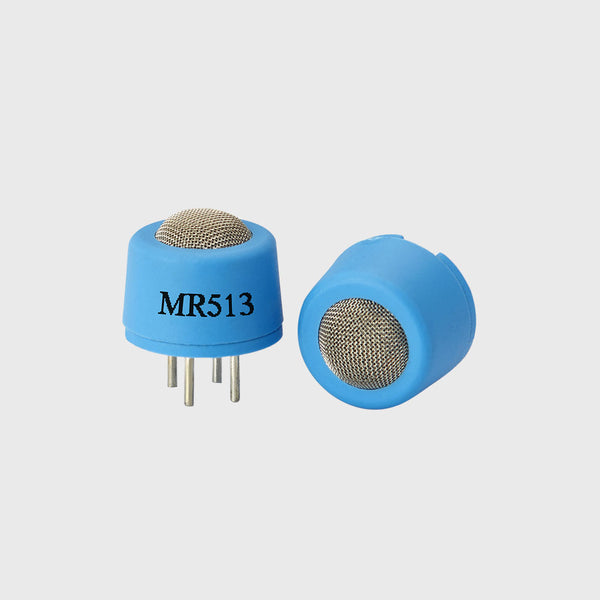

MR513 alcohol C2H5OH gas sensor detect the ethanol gas concentration through resistance variation of platinum loop, which is based on the principle of the gas absorbed on the surface of metal oxide semiconductor lead to the heat exchange and electricity exchange variation. It consists of detecting element and compensating element, which are the two legs of electric bridge. When exposing to the combustible C2H5OH gas, the resistance of detecting element reduces and the voltage variation of bridge output increase in direct proportion according to gas concentration. The compensating element performs for the reference and temperature compensation functions.

Application

Portable alcohol detector and automotive ignition control system for domestic, industrial spot.

Features

  • High sensitivity, large signal output
  • Short duration of initial stabilization, fast response.
  • Good reproducibility and reliability
  • Low consumption, miniature design

Specifications

Model MR513
Type Hot-wire gas sensor
Standard encapsulation Plastic encapsulation
Working voltage(V) 2.5±0.1
Working current(mA) ≤100
Sensitivity(mV) ≥60  (alcohol 100ppm)
Linearity(%) 0~5
Response time (90%) ≤20
Resume time (90%) ≤40
Using environment -20-+50℃ under 95%RH
Storage environment -20—+70℃ under 70%RH
Dimension(mm) Φ12mm×10mm



* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
