[shortdesc]Application:Widely used in smoke alarm for home use, smoke alarm for industrial use and portable smoke detector
Feature:Highly sensitivity, good long-term stability,long lifespan, high cost-effective
[/shortdesc]
Production Description:

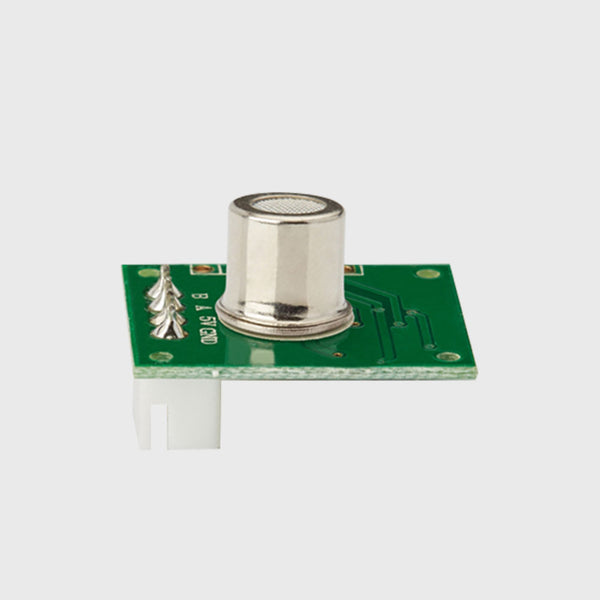

ZP13 adopts advanced plat surfaced semiconductor sensor. It is highly sensitive to smoke, propane &etc gases. The module is calibrated and has good uniformity and highly sensitivity.
Feature:

Highly sensitivity
good long-term stability
calibrated
3min preheating judgement
fault self-diagnosis
low power consumption
long lifespan
high cost-effective.

Application:
Widely used in smoke alarm for home use, smoke alarm for industrial use and portable smoke detector
Technical Parameters：

Model No.	ZP13
Detection Gas	Propane, smoke
Physical Interface	XH2.54-4P terminal socket
Output Data	A signal on-off output
Working voltage	5.0±0.2V DC（No voltage reverse protection）
Output data type	TTL level（200Ω protected resistance inside）
Working current	≤60mA
Warm up time	≤3 min
Response Time	≤20 s
Recovery Time	≤60 s
Operating Temperature	0～50℃
Operating Humidity	≤95％RH
Storage Temperature	－20～60℃
Storage Humidity	≤60％RH
Size	24×20×15mm（L×W×H）
Weight	≤20g
Sensitivity Attenuator	≤1%/ year
Life Span	≥5 years

10 pcs Winsen ZP13 Smoke Detection Module
