[shortdesc]Application:For complete device development of household gas leak alarm.
Feature:Small Size, Fast Response,UART output
[/shortdesc]
Production Description:

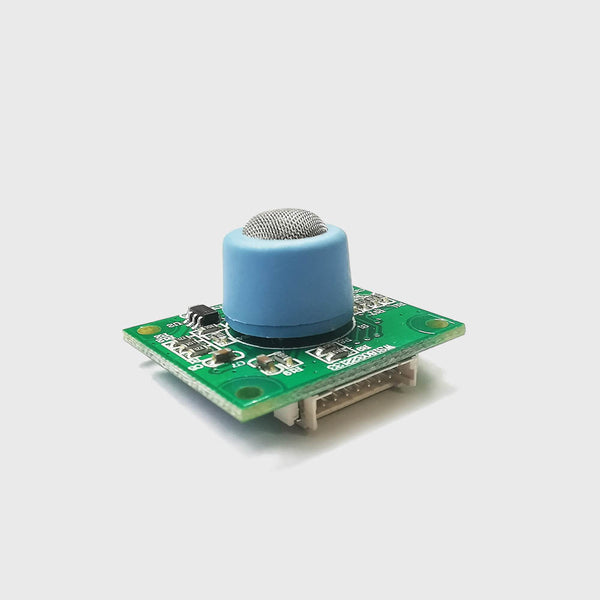

This ZC05 Module adopts catalytic gas sensor and has basic function of home use gas leakage alarm with digital display: supplying digital UART signal and status indication, buzzer, relay, switch signal through solenoid valve output, as well as support alarm point resetting. It is usually used for development of home use natural gas leakage detector.
Feature:

Small Size
Fast Response
UART output

Application:
For complete device development of household gas leak alarm.
Technical Parameters：

Model No.	ZC05
Detection Gas	Natural gas
Type of sensor	Catalytic type
Detection Range	1%~25%LEL
Output	UART (0 or 3V)
Working Voltage	DC (5±0.1)V
Preheat Time	3min
Response time	≤10s
Resume time	≤30s
Working Current	(150±10) mA
Resolution	100ppm
Expected Lifespan	2 years
Working conditions	Temperature: -10~55℃
Working conditions	Humidity:20%~90%RH
Storage Conditions	Temperature: -10~55℃
Storage Conditions	Humidity:20%~65%RH

10 pcs Winsen ZC05 Methane Sensor Module for CH4 detection
