The MW-pH101 sensor is an electrochemical PH water quality detecting sensor. The H+ in the solution to be tested generates a voltage signal by acting on the electrode of the sensor, and the magnitude of the voltage is proportional to the concentration of H+, The corresponding pH value of the solution can be obtained by measuring the voltage signal.

Application

It is widely used for water quality pH detection in laboratory research, water plant water supply, waste-water treatment, aquaculture, farmland irrigation and other fields.

Features

Low power consumption, wide linear range, excellent repeatability and stability.

Specifications

Items	Parameter
Detection Object	Solution
Measure Range	1～14
Sensitivity	1.1-1.6 mV/pH
Response Time	≤180 s
Output Linearity	Linear
temperature Range	0℃～50℃
Internal Resistance	<350 MΩ
Service Life	1 year

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.

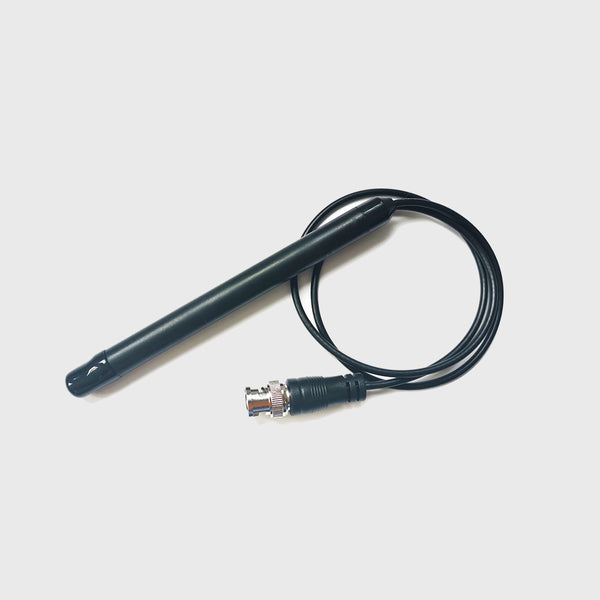

1 PC MW-pH101 water quality detection sensor
