[shortdesc]Application:It is used for hydrogen detection in industrial occasion and environmental protection field.
Feature:Low consumption,High precision,High sensitivity,Wide linear range
[/shortdesc]
Production Description:

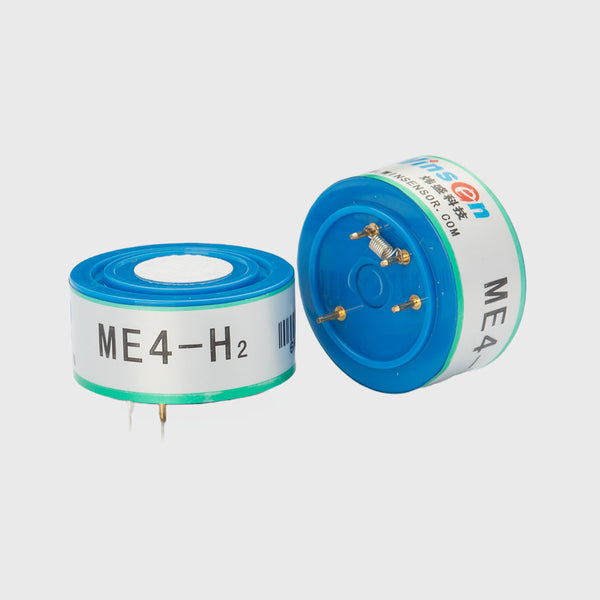

ME4-H2 hydrogen gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with hydrogen and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of hydrogen. So the concentration of the target gas could be got by measuring the value of current.
Feature:
Low consumption
High precision
High sensitivity
Wide linear range
Good anti-interference ability
Excellent repeatability and stability
Application:
It is used for hydrogen detection in industrial occasion and environmental protection field.

Main technical parameters:

Detection Gas	hydrogen（H2）
Detection Range	0～1000ppm
Max range	2000ppm
Sensitivity	（0.03±0.01）µA/ppm
Resolution	1ppm
Response Time(T90)	≤30S
Bias Voltage	0mV
Load Resistance	10Ω(recommended)
Repeatability	＜2﹪Output value
Stability(/month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	≤10ppm
Temperature range	-20℃～50℃
Humidity range	15﹪～90﹪RH no condensation
Pressure range	standard atmospheric pressure±10﹪
Lifespan	2 years

2pcs ME4-H2 gas sensor
