Application:Detecting CH2O in residential occasion and environmental protection areas.
Advantage:Low consumption,High precision,High sensitivity,Wide linear range,Good anti-interference ability,Excellent repeatability and stability
[/shortdesc]
Production Description:

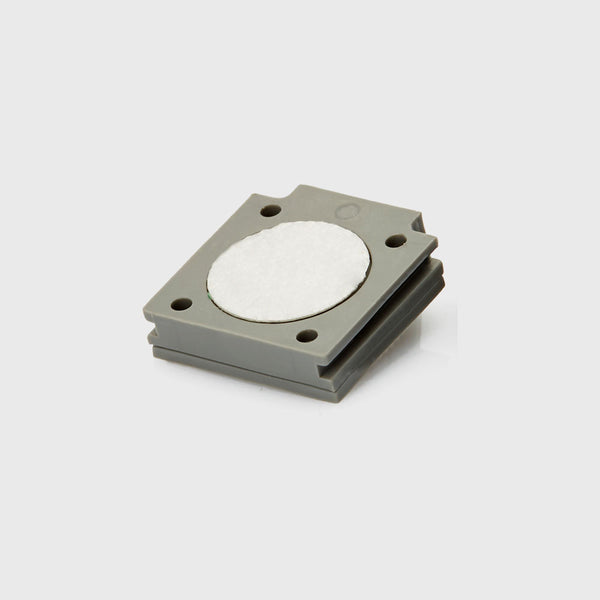

ME2-CH2O-16×15 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Feature:

Low consumption
High precision
High sensitivity
Wide linear range
Good anti-interference ability
Excellent repeatability and stability

Application:
Detecting CH2O in residential occasion and environmental protection areas
Main technical parameters:

Technical Parameters：

Item	Parameter
Detection gas	Formaldehyde (CH2O)
Measurement Range	0-5 ppm
Max detecting concentration	20 ppm
Sensitivity	0.25-0.60µA/ppm
Resolution ratio	≤0.02ppm
Response time（T90）	≤60S
Load resistance（recommended）	(120/200/300)Ω
Repeatability	＜2﹪output value
Output Linearity	linear
Zero drift（-20℃～40℃）	≤0.2ppm
Temperature Range	-20℃～50℃
Humidity Range	15﹪～90﹪RH(no condensation)
Pressure range	normal atmosphere ± 10%
Anticipated using life	5 years(in air, 18℃-25℃)

5 pcs ME2-CH2O-16x15 Formaldehyde Sensor
