Production Description:
MC112/ MC112C/ MC112D adopts catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element. The resistance of the test element rises once it meets the combustible gases, in the same time, the output voltage of the bridge changes and the voltage variation rises in direct proportion to the gas concentration. The compensate element, as a conference, has the function of compensating temperature and humidity.
It is convenient in use and also instead of catalytic component directly, widely used in various occasions with flammable and explosion hazard gas.
Feature:
It has good sensitivity to methane in wide range, and has advantages such as long lifespan, low cost and simple drive circuit &etc. The bridge output is linear, quick response, good repeatability and selectivity, good stability, excellent resistance to the interference of H2S gas and organosilicone.
Application:
It is widely used in industrial occasion to detect the concentration of natural gas, LPG,coal gas and alkanes. It is also used in combustible gas leakage alarm system, combustible gas detector and gas concentration meter and so on.
Main technical parameters:

Model		MC112/ MC112C/MC112D
Sensor Type		Catalytic
Standard Encapsulation		Metal, Metallurgy powder mesh
Working voltage(V)		3.0±0.1
Working current(mA)		MC112: 105±10; MC112C: 100±10; MC112D: 150±10
Sensitivity (mV)	1% CH4	MC112: 20~40; MC112C/MC112D: 15~35
	1% C3H8	MC112: 30~60; MC112C/MC112D: 30 ~ 55
Linearity		≤5%
Measuring range(%LEL)		0~100
Response Time (90%)		≤10s
Recovery Time (90%)		≤30s
Working Environment		-40 ~ +70℃, less than 95%RH
Storage Environment		-20 ~ +70℃, less than95%RH
Size (mm)		MC112/MC112D: 19×9.5×14; MC112C: 14×8×10
Anti-explosion Mark		ExdibⅠ

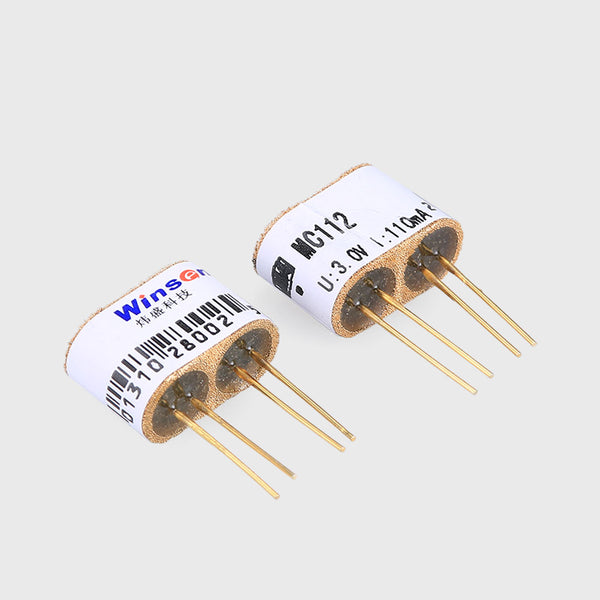

10pcs MC112 Catalytic Flammable Gas Sensor
