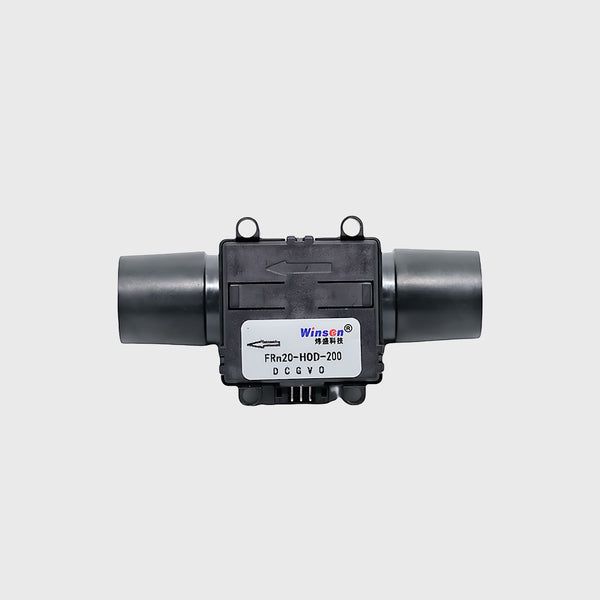

The FRn20 series micro-flow gas mass flow sensor is specifically designed for various micro-flow process control applications. This product is an upgrade based on the FR20 series, offering significantly enhanced zero stability and full-scale signal stability. It is suitable for industrial process monitoring.

Application

Industrial process control and monitoring
Energy management and ventilation systems
Flow measurement in medical and analytical equipment
Air-to-fuel ratio control

Features

High sensor sensitivity with extremely low start-up flow
Multiple signal output options
High stability and repeatability across the entire range

Specifications

	Parameter	Value	Unit
	Nominal diameter	20	mm
Flow measurement	Max flow	150、200、300	SLM
	Accuracy	±(2+0.5FS)	%
	Repeatability	0.5	%
	Maximum working pressure	200	kPa
	Working temperature	0～50	℃
Output signal	Output	Digital I²C & Analog 0.5V～4.5VDC
	IIC communication rate	100	kHz
	Signal response time	≤50	ms
Electrical Parameters	Working voltage	5～15	VDC
	Working current	≤30	mA
	Electrical interface	PH2.0-5P plug-in connector or 2.54-5pin pin header optional
Other	Storage temperature	-20℃～65℃
Other	Measurement medium	Dry, clean non-corrosive gases

Our company's flow sensors are calibrated by default under conditions of 20°C, 101.325 kPa, and using air as the reference. The production environment is maintained at a temperature of 22±2°C, in a cleanroom setting with 30%–35% relative humidity. If special requirements exist, calibration will be performed according to the customer's specifications.

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.

1PC FRn20 Flow Sensor
