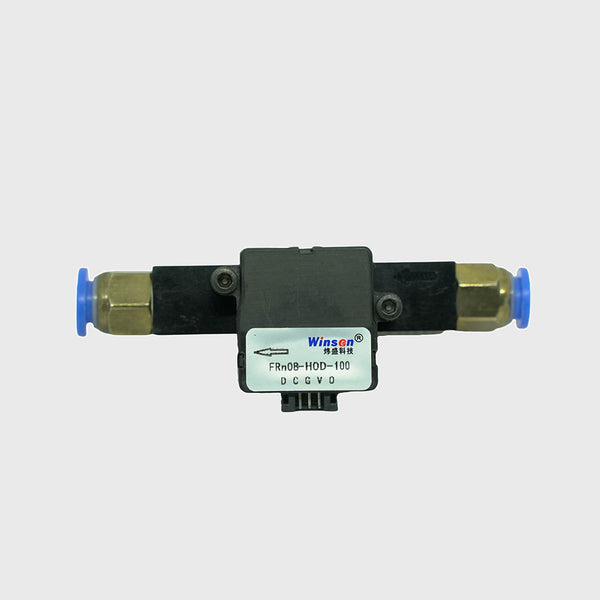

The FRn08 series flow sensor utilizes MEMS thermal technology to monitor the flow of gaseous media in pipelines. An upgraded version of the FR08 series, this product offers significantly improved zero-point stability and full-range signal stability, making it widely applicable for various gas measurement applications.

Application

Widely applicable for various gas measurement applications.

Features

High sensor sensitivity with extremely low start-up flow rate
Quick-connect fitting for compact installation
Multiple signal output options
High stability and repeatability across the full range

Specifications

	Data	Specification	Unit
	Bore	8	mm
Flow measurement	Max Range	50、100L/min	SLM
	Accuracy	±（2+0.5FS）	%
	Repeatability	0.50	%
	Max Working pressure	400kPa	kPa
	Working Temperature	0～50	℃
Output	Output method	Digital outputI²C or Analog output
	I²C Communication rate	100	kHz
	Response Time	≤50	ms
Electrical parameters	Working Voltage	5～15	VDC
	Working Current	≤30	mA
	Electrical interface	PH2.0-5Pplug-in connector
Other Information	Storage Temperature	-20～65	℃
	Measuring medium	Dry and clean non-corrosive gas
	Mechanical interface	Ø8 - 1/4" PT Pneumatic Quick-Connect Coupling

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.

1PC FRn08 Flow Sensor
