The FRn06 series micro-flow gas mass flow sensors are specifically designed for precision micro-flow process control applications. An upgraded version of the FR06, this product offers significantly improved zero-point stability and full-range signal consistency. It is widely used in various gas measurement application.

Application

Industrial process monitoring and control
Gas analysis equipment
Laboratory instrumentation
Environmental monitoring systems

Features

- High sensor sensitivity with extremely low start-up flow
- Multiple signal output options
- High stability and repeatability across the entire range

Specifications

	Data	Specification	Unit
Flow measurement	Bore	6	mm
	Max Range	5/10/15/20	SLM
	Accuracy	±（2+0.5FS）	%
	Repeatability	0.50%	%
	Max Working Pressure	400	kPa
	Working Temperature	0～50	℃
Output	Output method	Digital outputI²C or Analog output0.5V～4.5VDC
	I²C Communication rate	100	kHz
	Response Time	≤50	ms
Electrical parameters	Working Voltage	5～15	VDC
	Working Current	≤30	mA
	Electrical interface	PH2.0-5P plug-in connector
Other Information	Storage Temperature	-20～65	℃
	Mechanical interface	Dry and clean non-corrosive gas
	Measuring medium	∅6-G1/8 Pneumatic Quick-Connect Coupling

Note: Our flow sensors are calibrated under conditions of 20°C and 101.325 kPa using air as the reference medium. Production is carried out in a controlled environment with temperature maintained at 22±2°C, purified air, and 30%–35% relative humidity. Custom calibration is available upon request to meet specific customer requirements.

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.

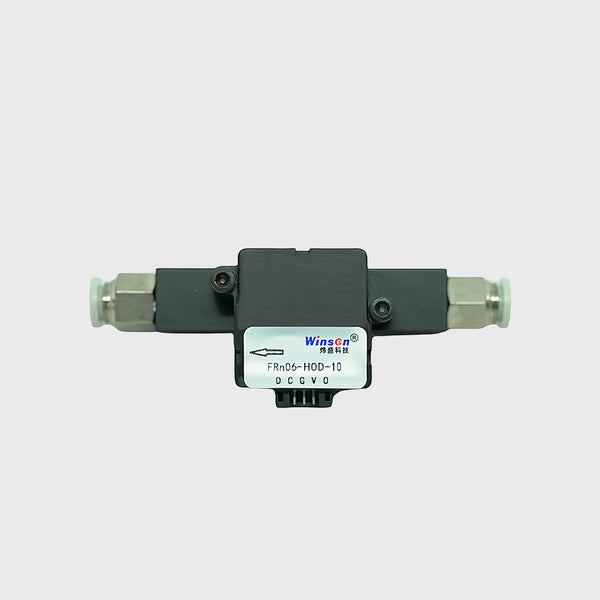

1PC FRn06 Flow Sensor
